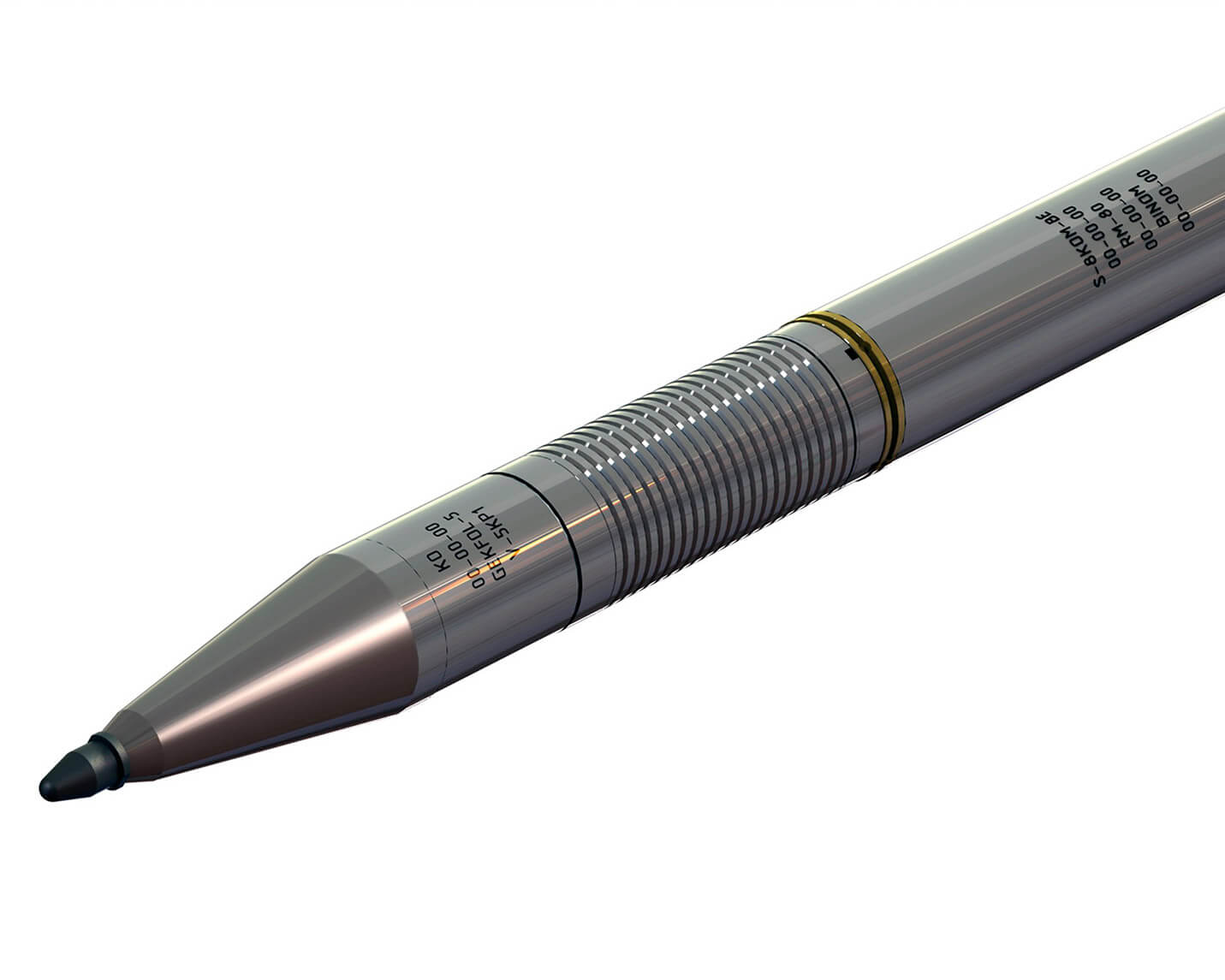

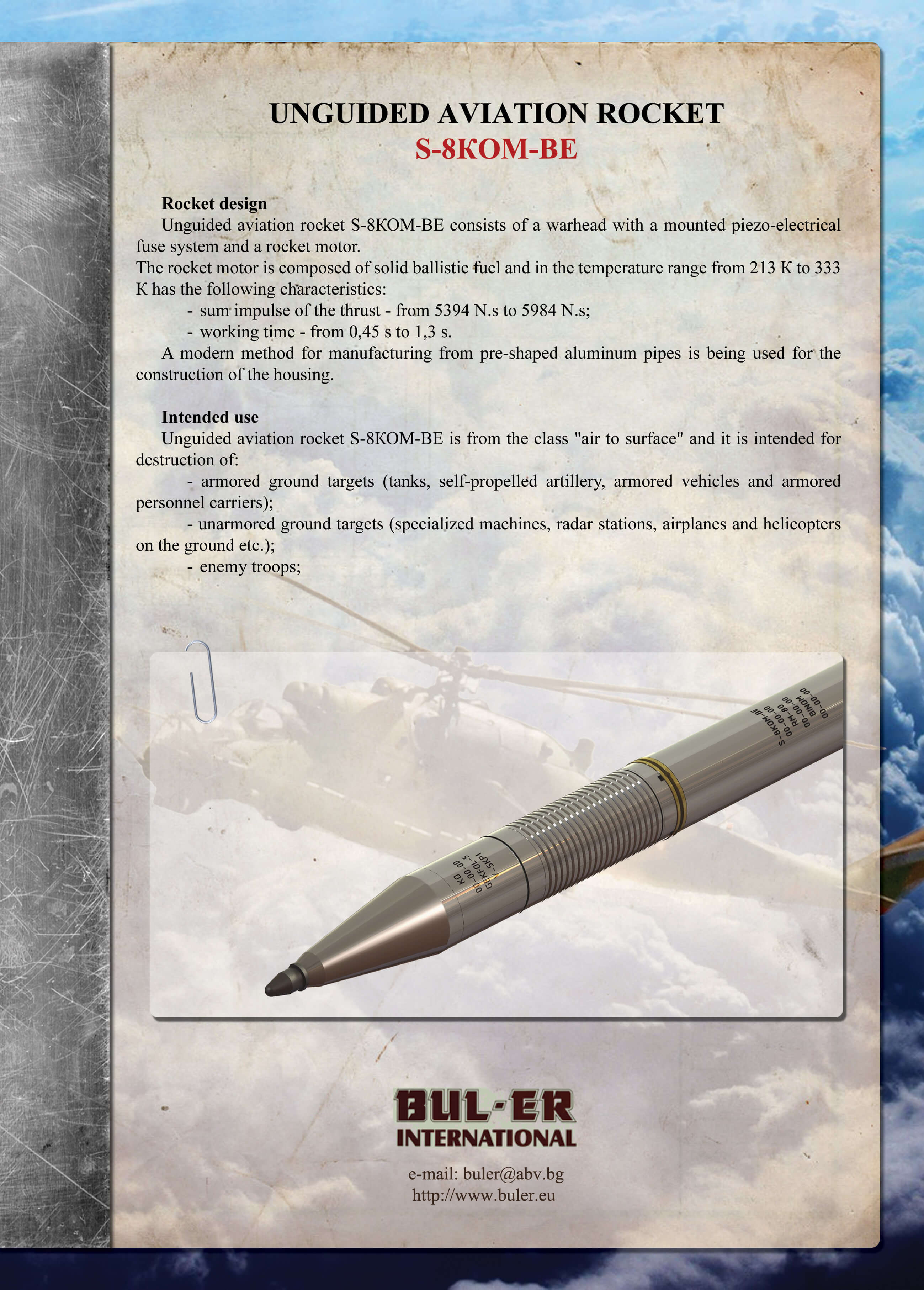

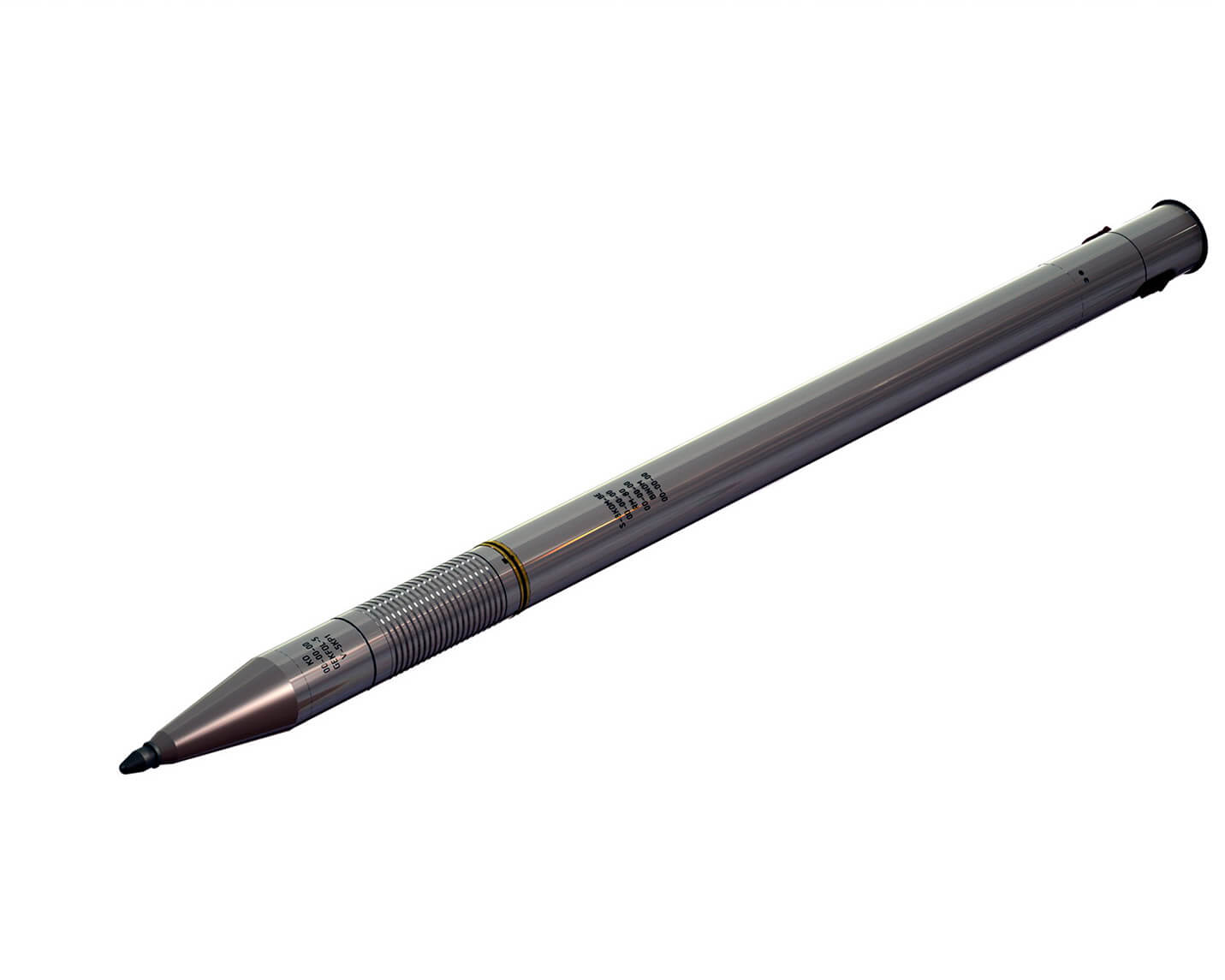

Rocket design Unguided aviation rocket S-8КОМ-ВЕ consists of a warhead with a mounted piezo-electrical fuse system and a rocket motor. The rocket motor is composed of solid ballistic fuel and in the temperature range from 213 К to 333 К has the following characteristics: - sum impulse of the thrust - from 5394 N.s to 5984 N.s;
- working time - from 0,45 s to 1,3 s.
A modern method for manufacturing from pre-shaped aluminum pipes is being used for the construction of the housing. |
Intended use Unguided aviation rocket S-8КОМ-ВЕ is from the class "air to surface" and it is intended for destruction of: - armored ground targets (tanks, self-propelled artillery, armored vehicles and armored personnel carriers);
- unarmored ground targets (specialized machines, radar stations, airplanes and helicopters on the ground etc.);
- enemy troops;
|

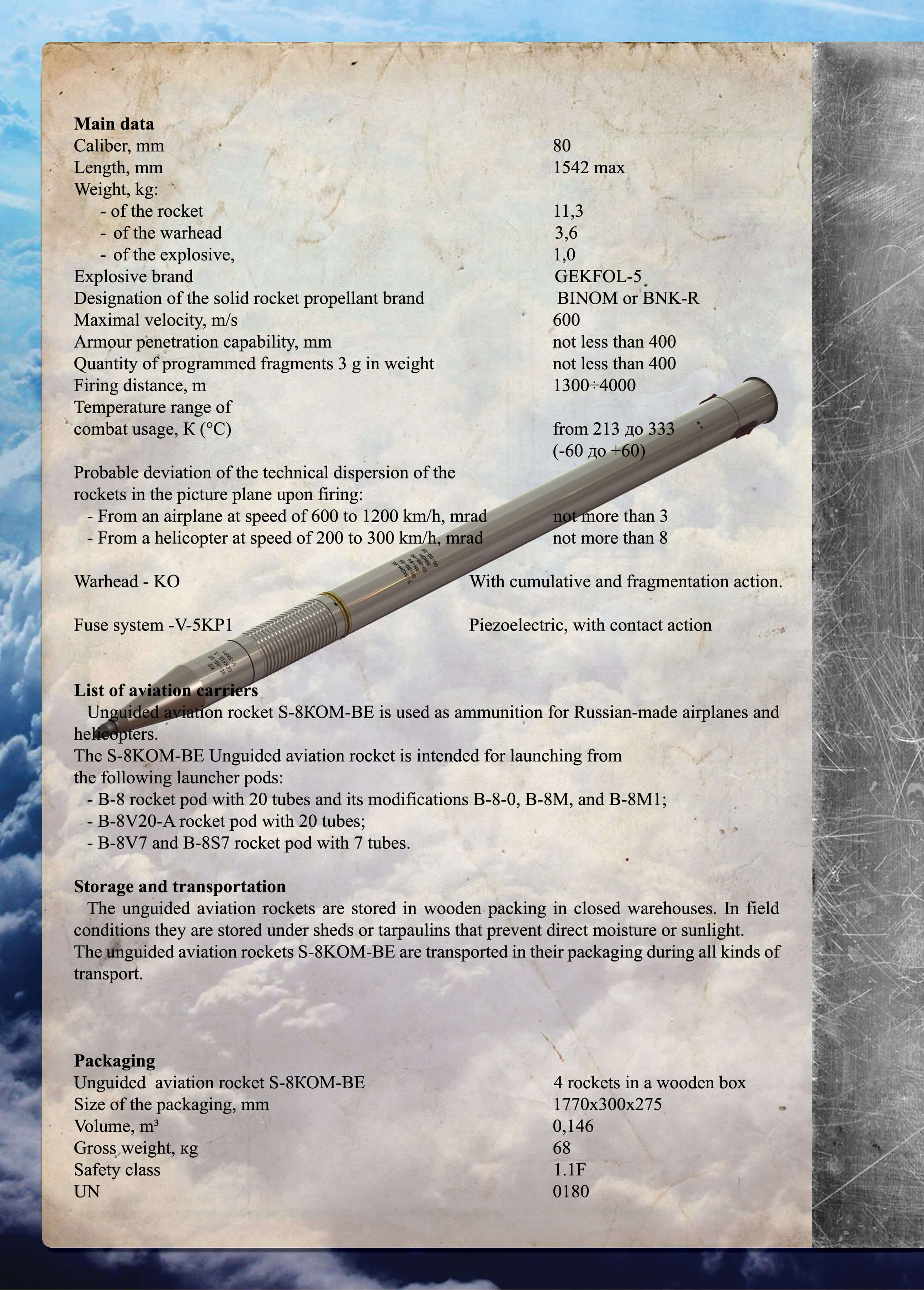

Main data |
| Caliber, mm | 80 |
| Length, mm | 1542 max |
| Weight, kg: |
| - of the rocket | 11,3 |
| - of the warhead | 3,6 |
| - of the explosive | 1,0 |
| Explosive brand | GEKFOL-5 |
| Designation of the solid rocket propellant brand | BINOM or BNK-R |
| Maximal velocity, m/s | 600 |
| Armour penetration capability, mm | not less than 400 |
| Quantity of programmed fragments 3 g in weight | not less than 400 |
| Firing distance, m | 1300 - 4000 |
| Temperature range of combat usage, К (°С) | from 213 to 333 (-60 to +60) |
| Probable deviation of the technical dispersion of the rockets in the picture plane upon firing |
| - From an airplane at speed of 600 to 1200 km/h, mrad | not more than 3 |
| - From a helicopter at speed of 200 to 300 km/h, mrad | not more than 8 |
| Warhead - KO | With cumulative and fragmentation action |
| Fuse system -V-5KP1 | Piezoelectric, with contact action |
List of aviation carriers Unguided aviation rocket S-8КОМ-ВЕ is used as ammunition for Russian-made airplanes and helicopters. The S-8KOM-BE Unguided aviation rocket is intended for launching from the following launcher pods: - B-8 rocket pod with 20 tubes and its modifications B-8-0, B-8M, and B-8M1;
- B-8V20-A rocket pod with 20 tubes;
- B-8V7 and B-8S7 rocket pod with 7 tubes.
|
Storage and transportation The unguided aviation rockets are stored in wooden packing in closed warehouses. In field conditions they are stored under sheds or tarpaulins that prevent direct moisture or sunlight. The unguided aviation rockets S-8KOM-BE are transported in their packaging during all kinds of transport. |
Packaging |
| Unguided aviation rocket S-8КОМ-ВЕ | 4 rockets in a wooden box |
| Size of the packaging, mm | 1770х300х275 |
| Volume, m3 | 0,146 |
| Gross weight, кg | 68 |
| Safety class | 1.1F |
| UN | 0180 |
