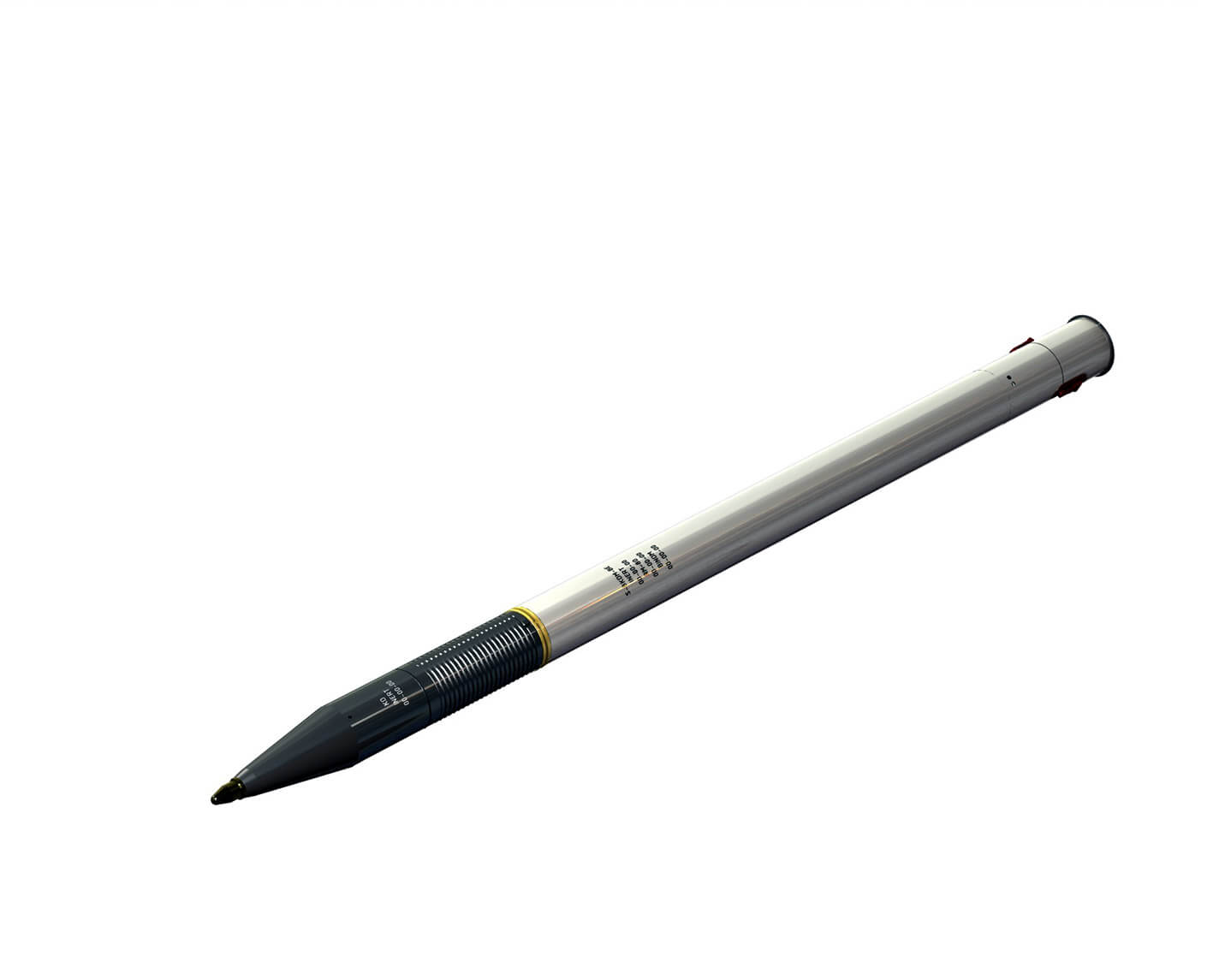

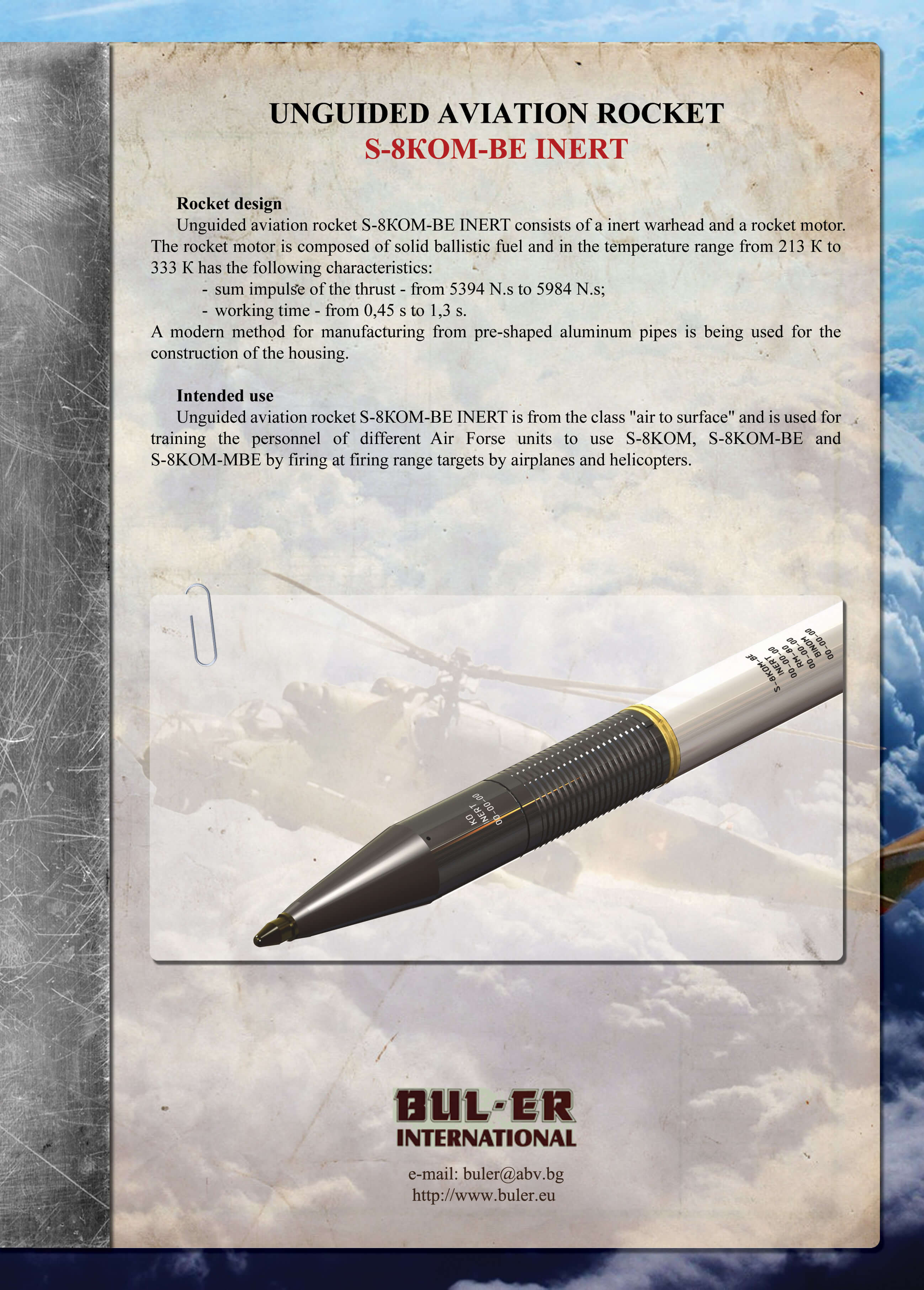

Rocket design Unguided aviation rocket S-8КОМ-ВЕ INERT consists of a inert warhead and a rocket motor. The rocket motor is composed of solid ballistic fuel and in the temperature range from 213 К to 333 К has the following characteristics: - sum impulse of the thrust - from 5394 N.s to 5984 N.s;
- working time - from 0,45 s to 1,3 s.
A modern method for manufacturing from pre-shaped aluminum pipes is being used for the construction of the housing. |
Intended use Unguided aviation rocket S-8КОМ-ВЕ INERT is from the class "air to surface" and is used for training the personnel of different Air Forse units to use S-8KOM, S-8KOM-BE and S-8KOM-MBE by firing at firing range targets by airplanes and helicopters. |

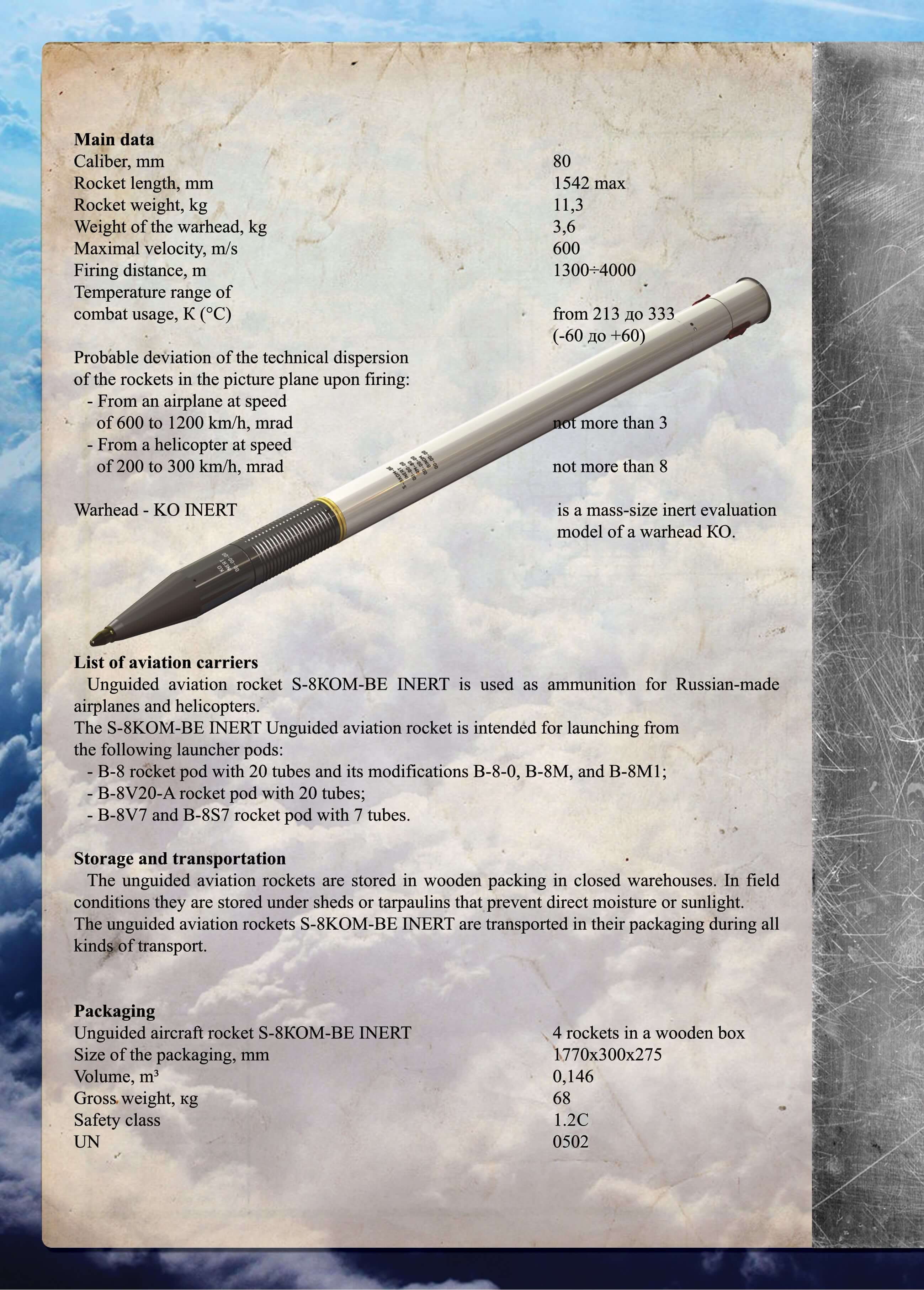

Main data |
| Caliber, mm | 80 |
| Rocket length, mm | 1542 max |
| Rocket weight, kg | 11,3 |
| Weight of the warhead, kg | 3,6 |
| Maximal velocity, m/s | 600 |
| Firing distance, m | 1300 - 4000 |
| Temperature range of combat usage, К (°С) | from 213 to 333 (-60 to +60) |
| Probable deviation of the technical dispersion of the rockets in the picture plane upon firing: |
| - From an airplane at speed of 600 to 1200 km/h, mrad | not more than 3 |
| - From a helicopter at speed of 200 to 300 km/h, mrad | not more than 8 |

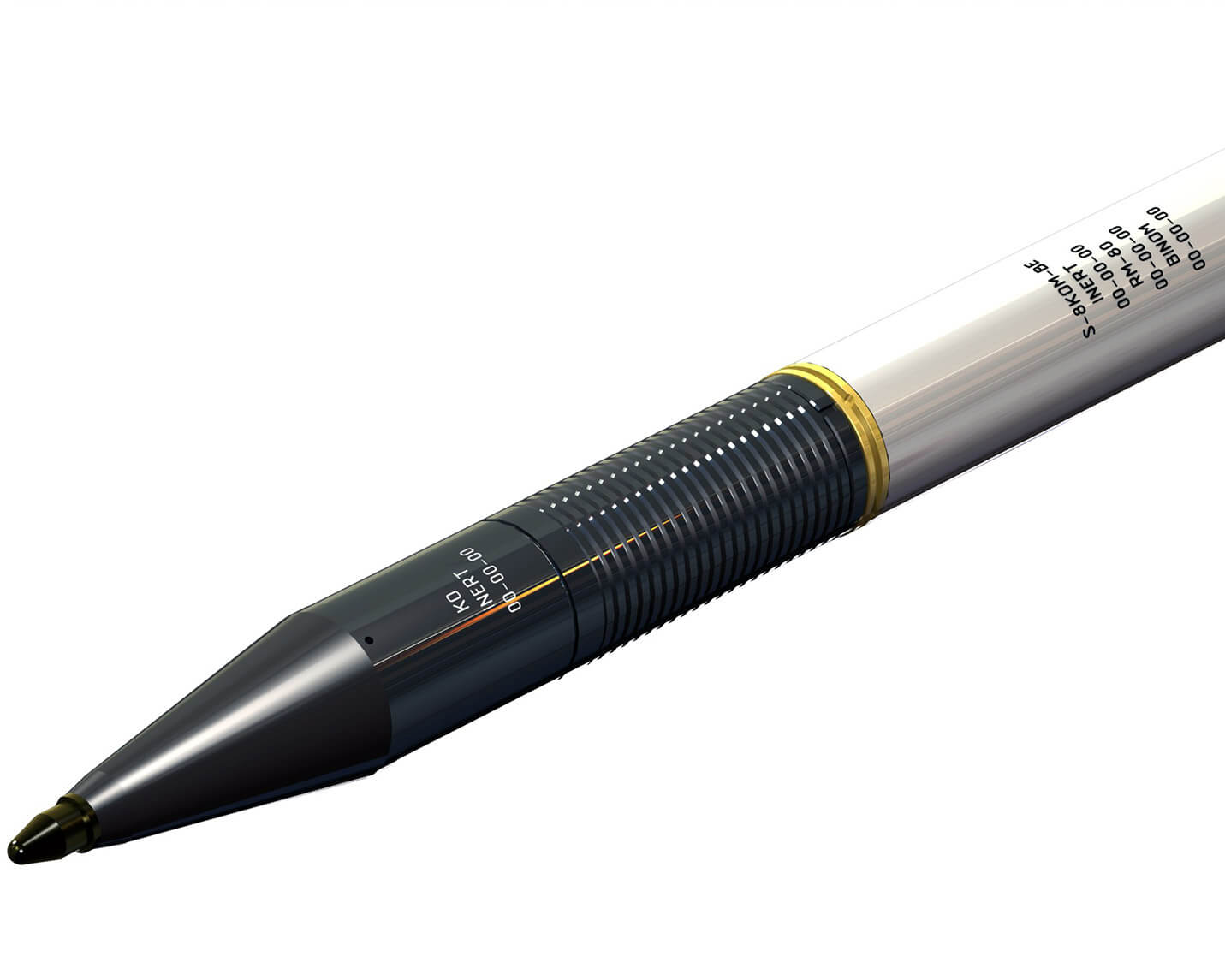

| Warhead - KO INERT | is a mass-size inert evaluation model of a warhead КО. |
List of aviation carriers Unguided aviation rocket S-8КОМ-ВЕ INERT is used as ammunition for Russian-made airplanes and helicopters. The S-8KOM-BE INERT Unguided aviation rocket is intended for launching from the following launcher pods: - B-8 rocket pod with 20 tubes and its modifications B-8-0, B-8M, and B-8M1;
- B-8V20-A rocket pod with 20 tubes;
- B-8V7 and B-8S7 rocket pod with 7 tubes.
|
Storage and transportation The unguided aviation rockets are stored in wooden packing in closed warehouses. In field conditions they are stored under sheds or tarpaulins that prevent direct moisture or sunlight. The unguided aviation rockets S-8KOM-BE INERT are transported in their packaging during all kinds of transport. |
Packaging |
| Unguided aviation rocket S-8КОМ-ВЕ INERT | 4 rockets in a wooden box |
| Size of the packaging, mm | 1770х300х275 |
| Volume, m3 | 0,146 |
| Gross weight, кg | 68 |
| Safety class | 1,2C |
| UN | 0502 |
