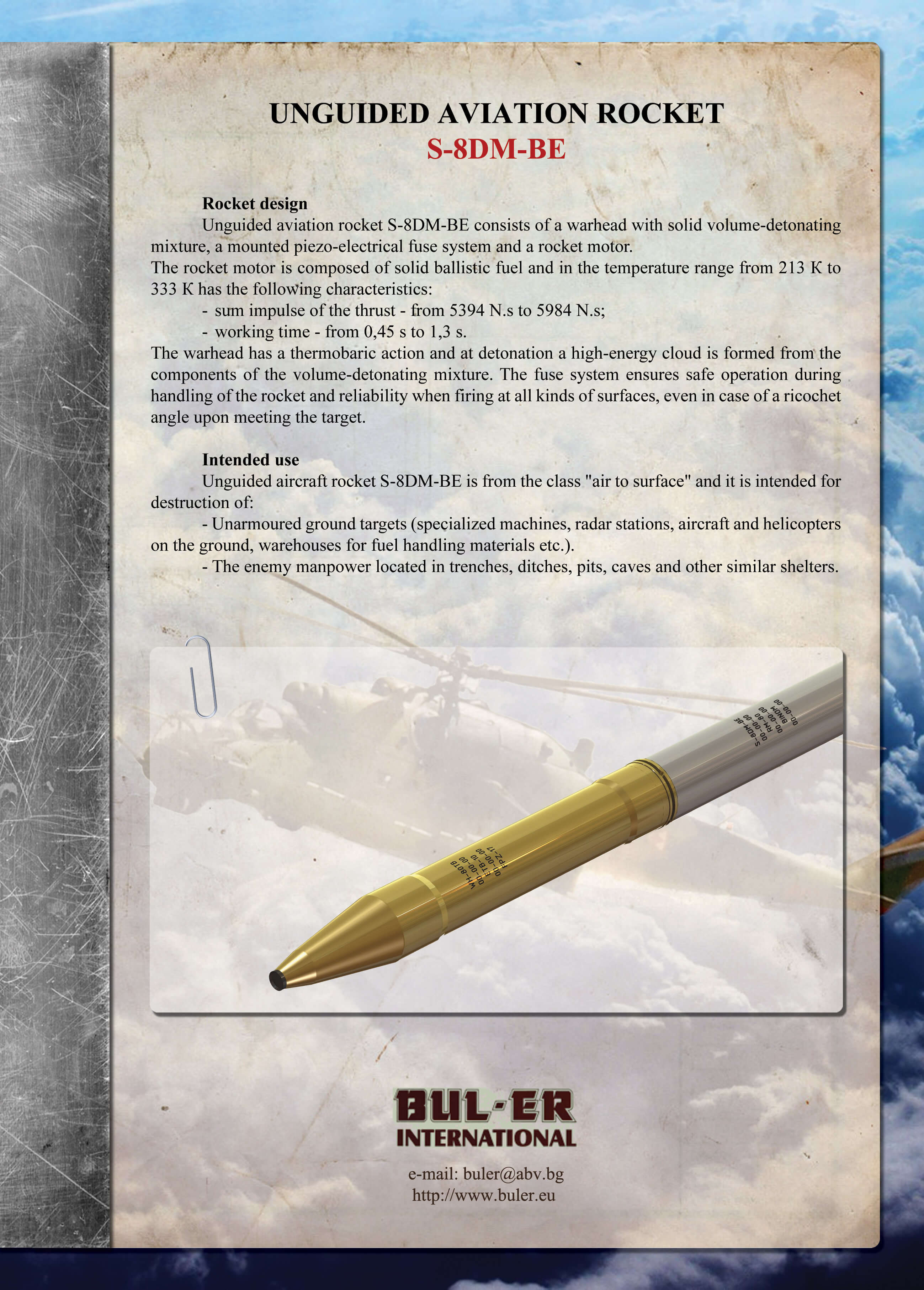

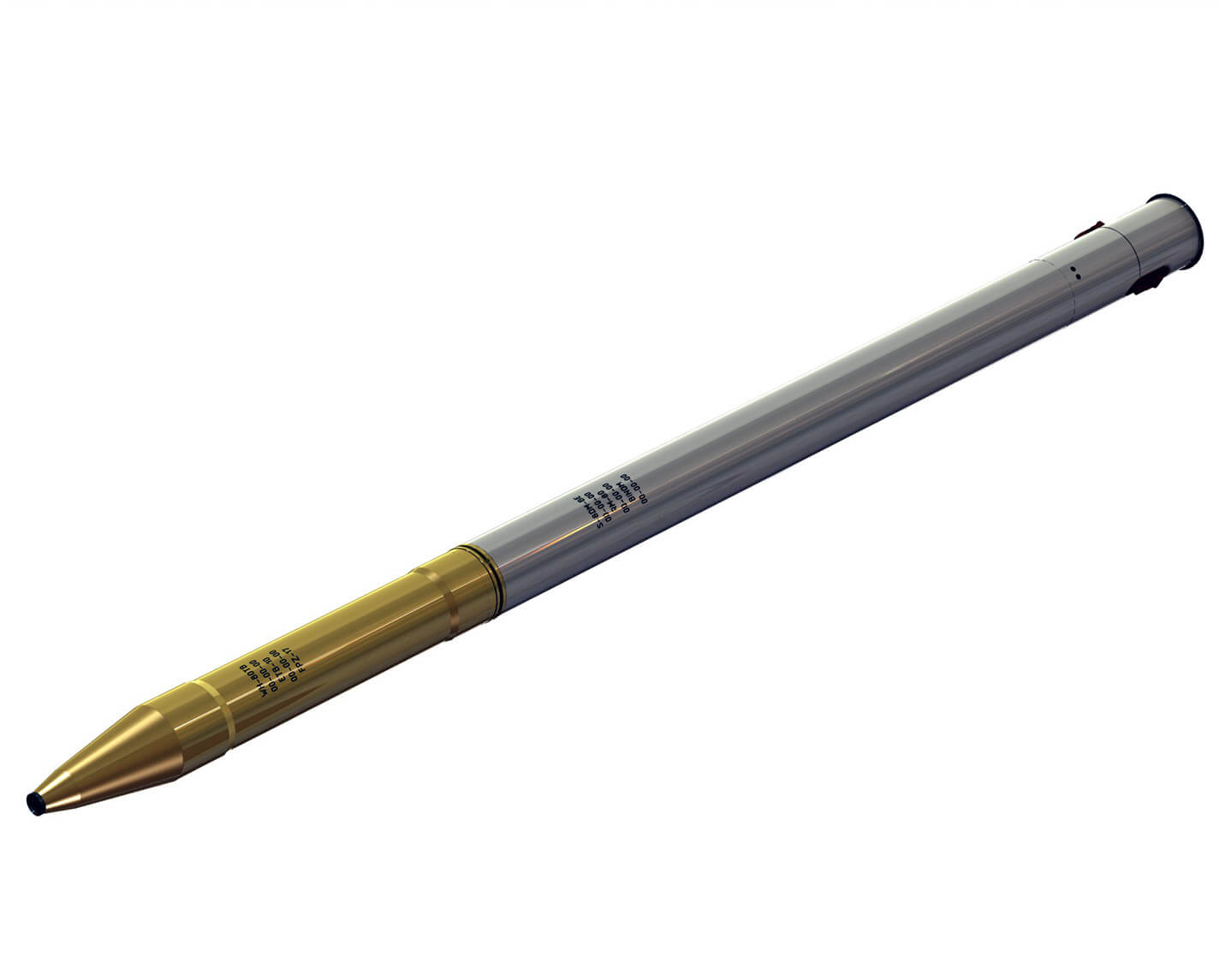

Rocket design Unguided aviation rocket S-8DМ-ВЕ consists of a warhead with solid volume-detonating mixture, a mounted piezo-electrical fuse system and a rocket motor. The rocket motor is composed of solid ballistic fuel and in the temperature range from 213 К to 333 К has the following characteristics: - sum impulse of the thrust - from 5394 N.s to 5984 N.s;
- working time - from 0,45s to 1,3s.

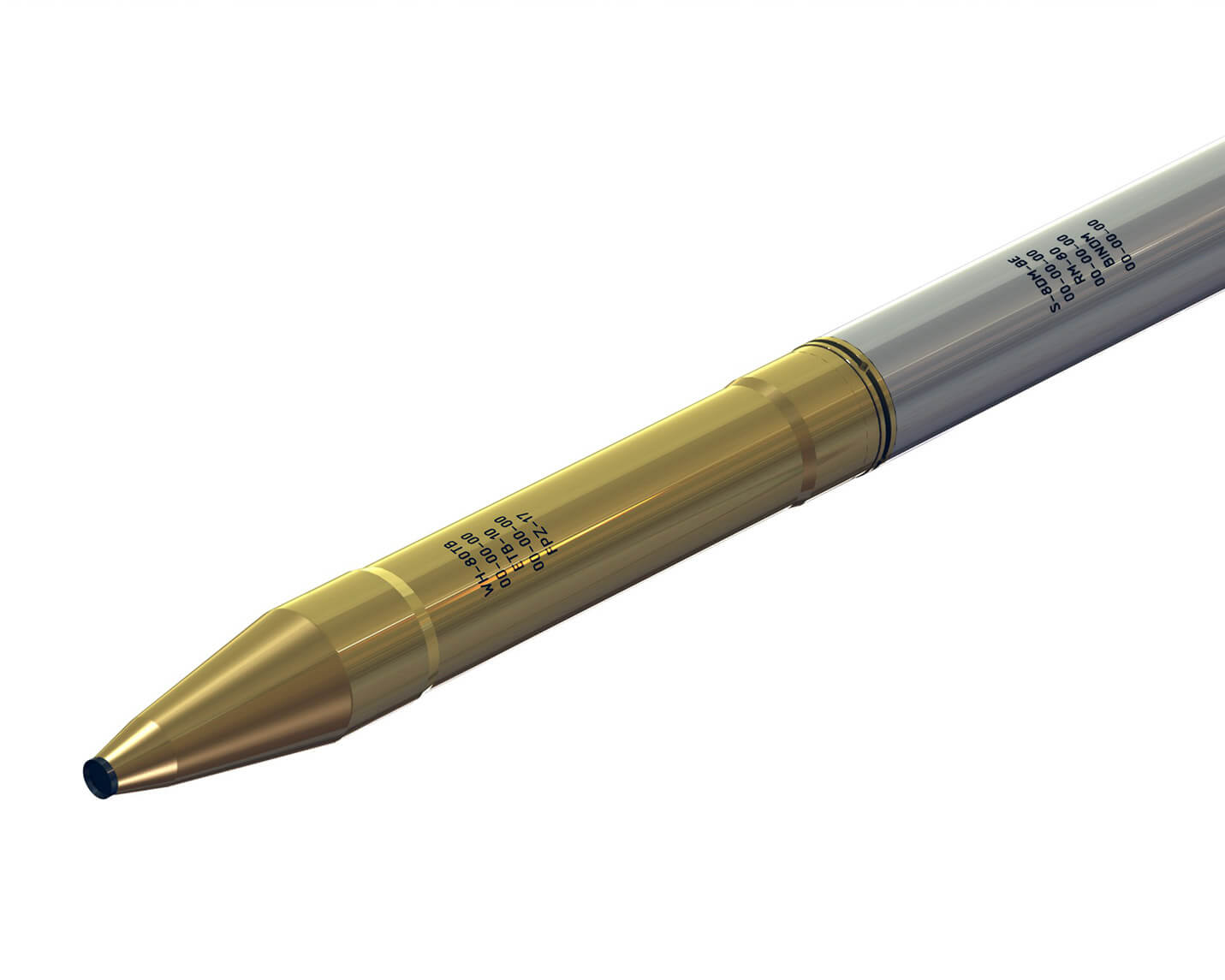

The warhead has a thermobaric action and at detonation a high-energy cloud is formed from the components of the volume-detonating mixture. The fuse system ensures safe operation during handling of the rocket and reliability when firing at all kinds of surfaces, even in case of a ricochet angle upon meeting the target. |
Intended use Unguided aviation rocket S-8DМ-ВЕ is from the class "air to surface" and it is intended for destruction of: - Unarmoured ground targets (specialized machines, radar stations, aircraft and helicopters on the ground, warehouses for fuel handling materials etc.);
- The enemy manpower located in trenches, ditches, pits, caves and other similar shelters.
|

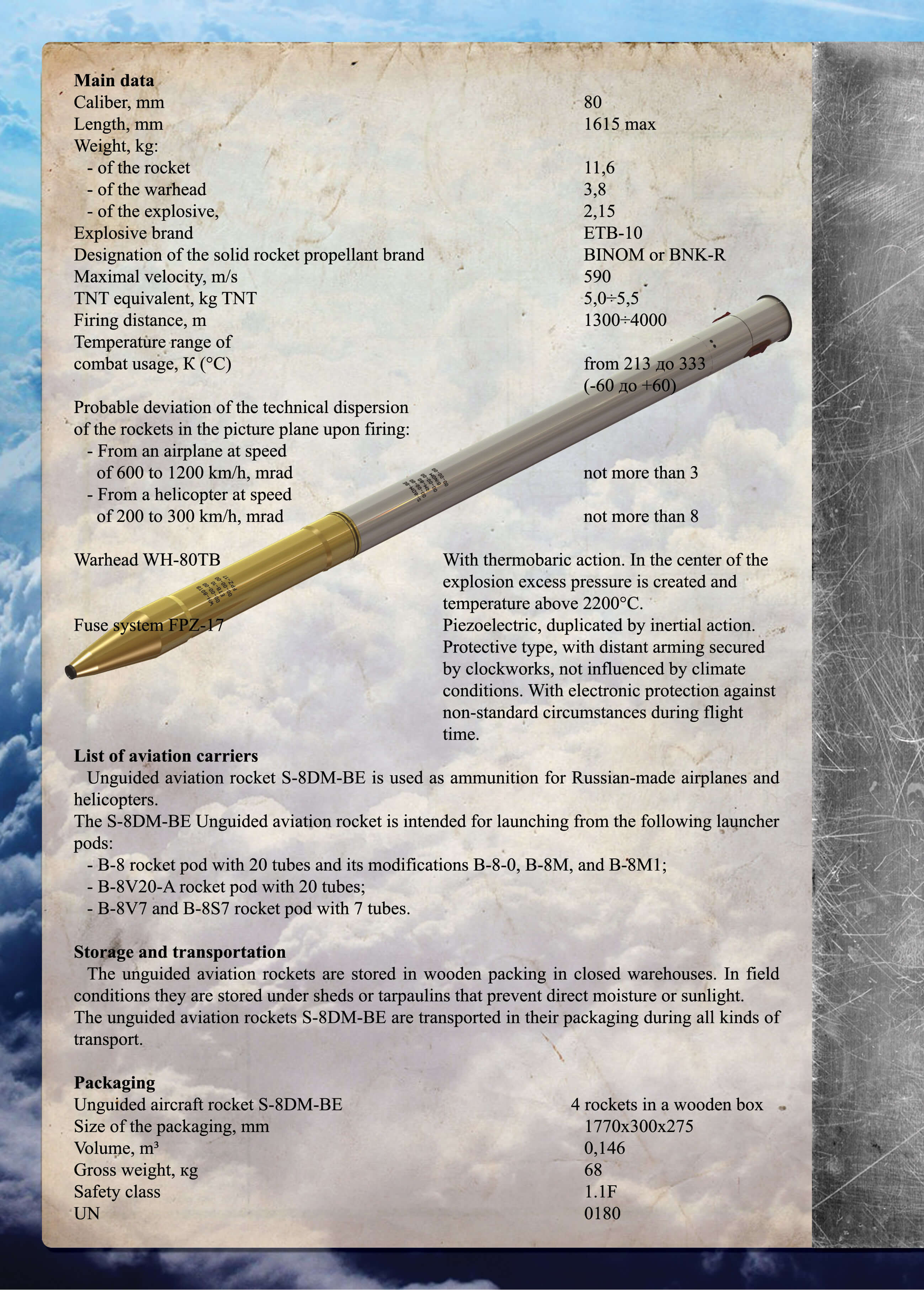

Main data |
| Caliber, mm | 80 |
| Length, mm | 1615 max |
| Weight, kg: |
| - of the rocket | 11,6 |
| - of the warhead | 3,8 |
| - of the explosive | 2,15 |
| Explosive brand | ETB-10 |
| Designation of the solid rocket propellant brand | BINOM or BNK-R |
| Maximal velocity, m/s | 590 |
| TNT equivalent, kg TNT | 5,0 - 5,5 |
| Firing distance, m | 1300 - 4000 |
| Temperature range of combat usage, К (°С) | from 213 to 333 (-60 to +60) |
| Probable deviation of the technical dispersion of the rockets in the picture plane upon firing: |
| - From an airplane at speed of 600 to 1200 km/h, mrad | not more than 3 |
| - From a helicopter at speed of 200 to 300 km/h, mrad | not more than 8 |
| Warhead – WH-80TB | With thermobaric action. In the center of the explosion excess pressure is created and temperature above 2200°C |
| Fuse system – FPZ-17 | Piezoelectric, duplicated by inertial action. Protective type, with distant arming secured by clockworks, not influenced by climate conditions. With electronic protection against non-standard circumstances during flight time. |
List of aviation carriers Unguided aviation rocket S-8DМ-ВЕ is used as ammunition for Russian-made airplanes and helicopters. The S-8DM-BE Unguided aviation rocket is intended for launching from the following launcher pods: - B-8 rocket pod with 20 tubes and its modifications B-8-0, B-8M, and B-8M1;
- B-8V20-A rocket pod with 20 tubes;
- B-8V7 and B-8S7 rocket pod with 7 tubes.
|
Storage and transportation The unguided aviation rockets are stored in wooden packing in closed warehouses. In field conditions they are stored under sheds or tarpaulins that prevent direct moisture or sunlight. The unguided aviation rockets S-8DM-BE are transported in their packaging during all kinds of transport. |
Packaging |
| Unguided aviation rocket S-8DМ-ВЕ | 4 rockets in a wooden box |
| Size of the packaging, mm | 1770х300х275 |
| Volume, m3 | 0,146 |
| Gross weight, кg | 68 |
| Safety class | 1,1F |
| UN | 0180 |
